Basic Info.
Model NO.
geogrid
Application
Retaining Wall, Steep Slop, Dam, Road Base
Viscose
Without Viscose
Function
Anti-slip, Reinforcement
Classification
Polyester Geogrid
Material
Plastic
Size
15-200kn
The Elongation Ratio
Not More Than 10%
Certificate
CE/ISO9001/BV
Width
4m,6m
Length
50m,100m
Mesh Size (mm)
12.7*12.7 / 25.4*25.4 /40*40
Raw Material
PP
Market
Europe, Africa, Asia, Middle East etc.
Samples
Free Samples
Transport Package
Black PE Film or Woven Bags for Outside Packag
Specification
12.7*12.7 / 25.4*25.4 /40*40
Trademark
zhongloo
Origin
China
HS Code
392590000
Production Capacity
50000m2/Day
Packaging & Delivery
Package Size
60.00cm * 60.00cm * 50.00cm
Package Gross Weight
2.000kg
Product Description
25-200kn/m High Quality Black Biaxial Stretch Geogrid For Fence Mining Reinforcement

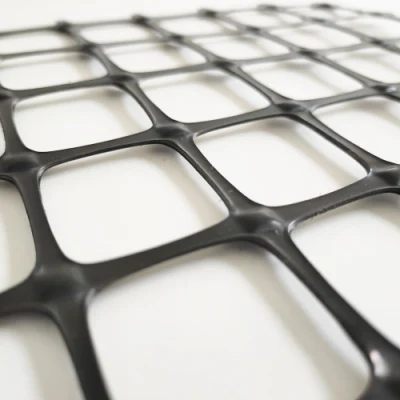

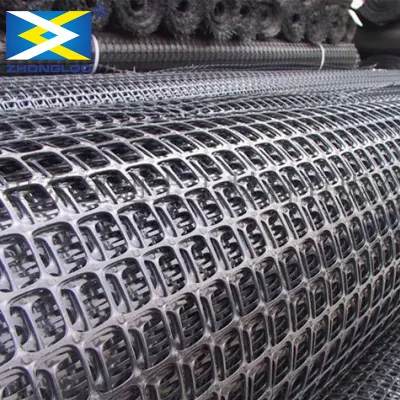

Introduction:Biaxial geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforcement material.
Features:

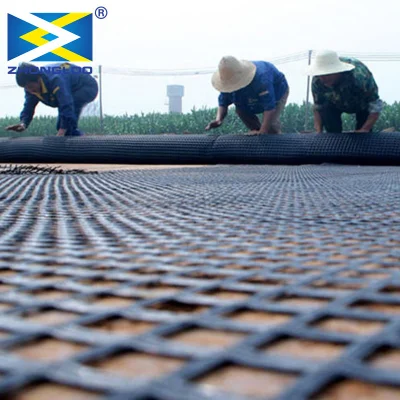

1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.
2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
4. Prevent culverts from flawing.
5. Enhance earth slope and prevent water loss and soil erosion.
6. Decrease underlayer thickness and save manufacturing cost.
7. Enhance the stability of side slope turf net patch to improve greening.
8. Replace wire netting used in mine as intermediate ceiling netting.
Biaxial PP/Plastics Geogrid Data Sheet
| MODEL | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||
| Mass per Unit Area (g/m2) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||
| Width (m) | 1-6m | ||||||||
| Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| (MD)Yield Elongation (%)≤ | 15 | ||||||||
| (CD)Yield Elongation (%)≤ | 13 | ||||||||
| Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 15 | 18 | 19 | |||
| Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 17 | 20 | 24 | |||
| Strength at 5% Strain (KN/m) ≥(MD) | 8 | 15 | 24 | 30 | 35 | 39 | |||
| Strength at 5% Strain (KN/m) ≥(CD) | 10 | 16 | 25 | 31 | 36 | 40 | |||
| Mesh Size (mm) | 30*30 | 36*38 | 34*36 | 34*36 | 40*40 | 40*40 | |||
| Remark | Special specifications can be customized according to the contract. | ||||||||
Application:
Geogrids focus almost entirely on reinforcement applications, although separation may be a function. The following are examples of a few applications.
Slope Reinforcement- embankments over soft soils, extra-steep earthwork slopes, landfill liner systems, and industrial and contaminated land reclamation

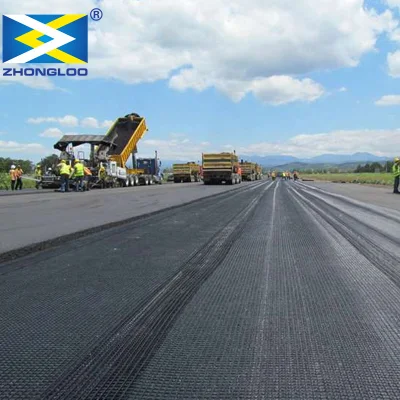

Base Reinforcement- foundations of roadbeds, parking lots, railroad tracks beds, airports runways, permanent unpaved roads, construction haul roads
Wall Reinforcement- retaining walls, sea walls, airport noise barriers, and bridge supports
Berm Reinforcement - spillway channels for earthen dams, levees, and waste contaminated ponds, banks for earthen canals and waterways.
Company Information
Anhui Zhonglu Engineering Materials Co., Ltd., located in the Taohua Industrial Park, Economic Development District in Hefei, Anhui Province,with a registered capital of 52 million yuan, and our annual production of various types of geosynthetics is 60 million square meters. We are a production, research and development, sales for the integration of high-tech enterprises,that included geotextile, geomembrane, composite geomembrane, geogrid, geocell, warp knitted composite material, geonet, waterproof board, drain board and other new geosynthetics . We follow the principle of " taking science and technology innovation as the driving force, to customer satisfaction as the goal" and dedicate to transportation construction,water conservancy,environmental protection and landscape garden ,municipal large engineering related products research and development,production technology and applications.Our target is to become the best new geosynthetics quality production supplier in the world.
FAQ
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.
Q: What is your MOQ?
A: As customers' requests.
Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
Q: Can you make special Design and logo on product?
A: Yes, very easy.
Please contact me for more info today!
Anhui Zhonglu Engineering Materials Co., Ltd.
Sales Manager : Mrs. Summer Meng
