Basic Info.
Model NO.
JRLED700+500
Transport Package
Plywood
Trademark
JoRadaint
Origin
P. R. China
Production Capacity
2000units/Month
Product Description

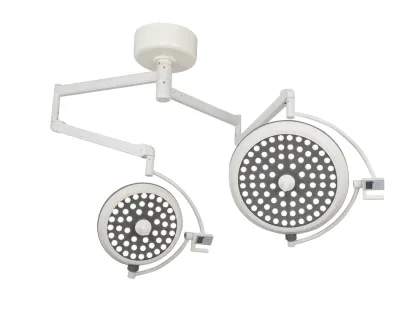

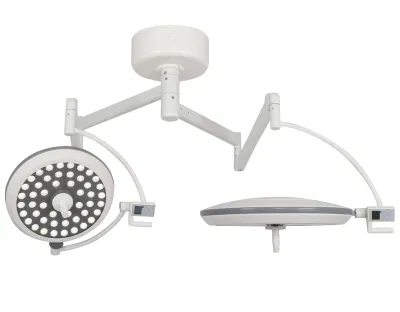

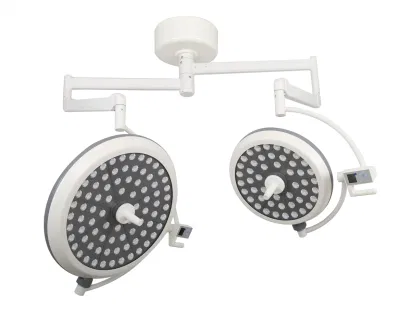

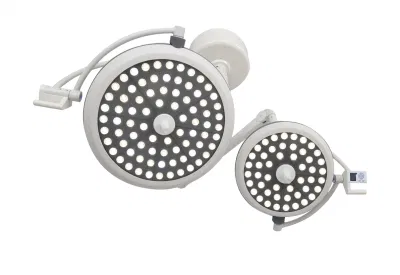

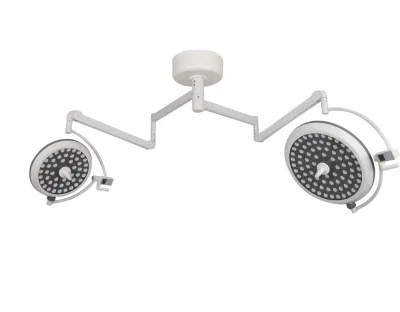

JRKDLED700/500 Shadowless Operating Lamp
| Technical parameters | JRLED700 | JRLED500 |
| Illumination (Lux) adjustable | 40,000-180,000Lux | 30,000-160,000Lux |
| Lamp bulb quantity | 80 pcs | 48 pcs |
| Bulb type | German OSRAM LED bulb | German OSRAM LED bulb |
| Bulb average life | ≥80,000h | ≥80,000h |
| Colour temperature (K) adjustable | 3700K ~5000K | 3700K ~5000K |
| Colour rendering index (CRI) adjustable | 85~98 | 85~98 |
| Illumination depth(mm) | 50-180cm | 50-180cm |
| Facular diameter(mm) | 160-280mm | 160-280mm |
| Dimming Control | 1%-100% | 1%-100% |
| Bulb Power | 80 | 48 |
| Temp Rise (doctor head) | <1ºC | <1ºC |
| Input Power | AC100-240V 50/60HZ | AC100-240V 50/60HZ |
| Best Install Height(m) | 2.7-3.1m | 2.7-3.1m |
Germany imported beads
Imported French lens
mould Die-casting Eight edge type Revolving arm
Each LED can be replaced individually, which guarantees maximum economy.
Configuring lightweight balance arm suspension system ,six groups universal joint linkage ,mobile, lightweight positioning and stablibity .A 360°all-round design ,can meet the need for surgery in different heights and angles.
color temperature constant, soft, very close to the natural sun light.
The use of liquid crystal display button control, to meet the needs of the medical staff of different patients with the brightness of the operation.
Product features:
1 , Ideal cold light effects.
Using the new LED cold light source, energy saving and environmental protection and long service life up to 80,000hours or more. Temperature increase over surgeon's head < 1 ºC .
LED do not engender infrared ray and ultraviolet radiation, it doesn't have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate the wound healing after surgery, and has no Radiation pollution.
LED color temperature constant, soft, very close to the natural sun light.
2 , Excellent shadowless effect
Lamp with the most scientific radian , Multi point light source design, so that more fullness of the light spot , When the lamps are partially occluded, also can achieve perfect shadowless effect.
Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to vertical floor, convenient to any angle illumination.
3 , Excellent deep lighting
By adopting the computer-aided modular design, the multi-LED light column is focused and irradiated to generate the depth illumination of the light column of 1200 mm or more, the center illumination is up to above 160,000 lnx, and the 3700 K-5000K adjustable color temperature close to the natural sunlight is provided, the color of the human body is truly reflected, and the requirements of various surgical illumination are fully met.
4 , Advanced control system
The liquid crystal display push-button control for power switch, illumination, color temperature adjustment, to meet the requirements of different medical staff and patients .
It offers illuminance memory function.
Multiple multi-group centralized control methods with the same power to ensure that single LED damage does not affect the operation lighting requirements.
5 , Universal suspension system
Rotating arm, a new type of alloy material is made of eight edge type.
Balance system adopts imported arm spring assembly , The structure is light, easy to manipulate, accurate positioning, can provide the maximum range of regulation.
The equipped with fatigue correcting unit and fix position hand handle device, easy to fix position after long time use.
6 , Modern laminar lamp
The thickest part of lamp-chimney is not more than 10cm.
The lamp-chimney is made of Imported aluminum material, The handle on the central of lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment, easily adjust, flexible fixed.
