Basic Info.
Product Description
Product Description:
Features
Engineered for increasingly complex surgical scenes, YD-005 comes with intelligent automatic control system satisfying various demands of general surgeries
Extra wide tabletop, extreme loading system, long horizontal sliding that can be suitable for both X-ray and C-arm. GTE500 is an ideal electric operating table
l Longitudinal slide up to 350mm for free access to C arm
l Extreme weight load capacity of 250kgs with highest safety and stability
l Memory pad with antistatic, waterproof design
l Standard override panel control makes the control safer
l Battery power for 50-80 operations
Brief description

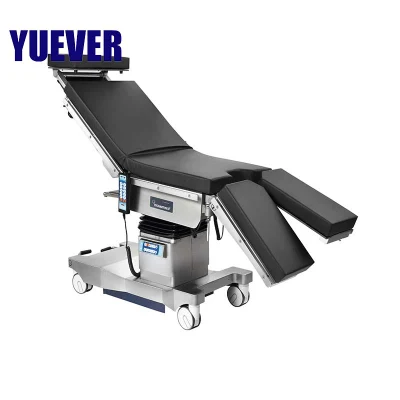

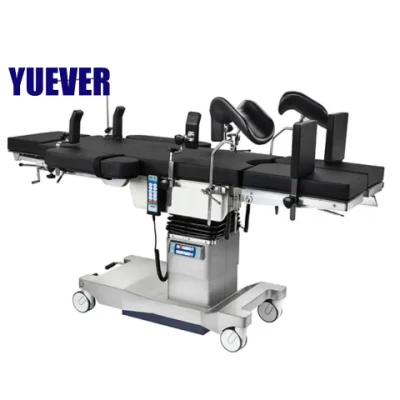

China Hospital Medical Multipurpose Surgery OT OR Surgical Kidney Bridge Electric C Arm Compatible
Operating Table
1. Manufacture
2. Customize available
3. Quality warranty
4. Multiple function
5. Easy operate
Details:
Carefully explain every details
Technical Parameters | ||
Model | YD-500 | |
Tabletop trendelenburg | Reverse Trendelenburg | 0~25° |
Trendelenburg | 0~25° | |
Lateral Tilt (Left and Right) | 0~15° | |
Head Plate | Up | 0~40° |
Down | 0~90° | |
Flexible | 0~40° | |
Back Plate | Up | 0~80° |
Down | 0~20° | |
Leg Plate | Up | 0~15° |
Down | 0~90° | |
Outward | 0~90° | |
Kidney Bridge Up | 110mm | |
Horizontal sliding | 350mm | |
Dimensions | Length | 2100mm |
Width | 550mm | |
Tabletop Lowest Height | 710mm | |
Elevation Range | 300mm | |
Standard Accessories | ||
Anaesthesia Screen | 1 piece | |
Kidney Bridge Handle | 1 piece | |
Shoulder Support | 1 pair | |
Body Support | 1 pair | |
Arm Support | 1 pair | |
Long Fixing Clamp | 1 pair | |
Leg Support | 1 pair | |
Foot Support | 1 pair | |
Fixing Clamp | 8 pieces | |
Hand Remote | 1 piece | |
Mattress | 1 set | |
Power Line | 1 piece | |
patient or to reverse the positioning of the patient. Each selected fluoros copy point may easily be moved in front of or behind the
column and ensures comfortable access to the patient from initiation to surgery.
2.lt can easily be moved to any desired position as four castors.
4.Two joint head plate.
5.Built-in kidney bridge.
