Basic Info.
Model NO.
WTPET30/30C
Weight
100g~600g
Tensile Strength
From 20kn/M to 800kn/M
Roll Width
1m~6m
Roll Length
50m to 200m
Delivery
5days to 15 Days
Sample
Free Sample
Certification
Ce, ISO, SGS
Mesh Size
12.7mm*12.7mm, 25.4mm*25.4mm, 40mm*40mm, 50mm*50mm
Product Name
Geocomposite Pet Geogrid
Keywords
Polyester Geogrid, Pet Geogrid, Geogrid
Transport Package
Rolls
Specification
6m*100m or as your request
Trademark
Wantong
Origin
Taian City, Shandong Province
HS Code
5903109000
Production Capacity
50000square/Day
Product Description

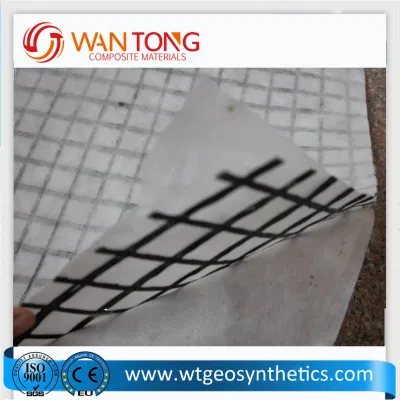

Polyester Geogrid Composite with Non Woven Fabric Geocomposite Pet Geogrid
Polyester composite geotextile is made from high modulus polyester and coated with bitumen to achieve a good bond to the asphalt. One side has a light weight nonwoven attached, also coated with bitumen. This nonwoven simplifies installation and ensures continuous bond between the layers.
Polyester composite geotextile is made from high modulus polyester and coated with bitumen to achieve a good bond to the asphalt. One side has a light weight nonwoven attached, also coated with bitumen. This nonwoven simplifies installation and ensures continuous bond between the layers.
The Typical Uses of Bitumen Coated Polyester Geogrid Composite with Non Woven Fabric Geocomposite PET Geogrid
Anti-cracking reinforcement in asphaltReinforcement of joints
Overlays to old concrete roads
Reinforcement of asphalt layers in hydraulic engineering and landfill.
The Technical Parameters of Bitumen Coated Polyester Geogrid Composite with Non Woven Fabric Geocomposite PET Geogrid
| Specification | PET30/30C | PET50/50C | PET75/75C | PET100/100C | |
| Breaking strength (kN/m) | MD | 30 | 50 | 75 | 100 |
| CD | 30 | 50 | 75 | 100 | |
| Breaking elongation ( % ) | ≤ 12 | ≤ 12 | ≤ 12 | ≤ 12 | |
| Nonwoven weight (g/m2) | 40 | 40 | 40 | 40 | |
| Grid size (mm x mm) | 25x25 or 40x40 | ||||
| Max. width (m) | 5.3 | 5.3 | 5.3 | 5.3 | |
The Workshop and production line of Bitumen Coated Polyester Geogrid Composite with Non Woven Fabric Geocomposite PET Geogrid
The Packaging of Bitumen Coated Polyester Geogrid Composite with Non Woven Fabric Geocomposite PET Geogrid
About US
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
