Basic Info.
Model NO.
Biaxial Geogrid
Classification
Plastic Geogrid
Material
HDPE or PP
Feature
High Tensile Strength
Name
Biaxial Geogrid
Width
1-6m
Length
100m or as You Need
Model
Tggs-Sx
Transport Package
Straps for Rolls Tightening
Specification
20-200KN/m
Trademark
Zhongloo
Origin
China
HS Code
3926909090
Production Capacity
2, 000, 000 M2 Per Month
Product Description
PP Biaxial Geogrid Supplier for retaining wall
Product introduction

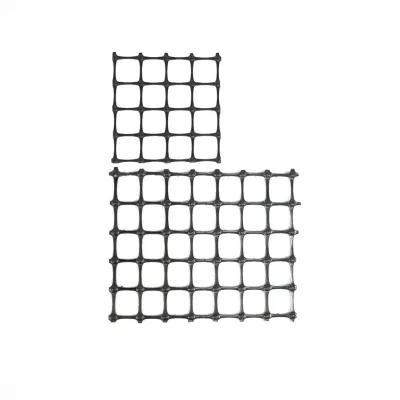

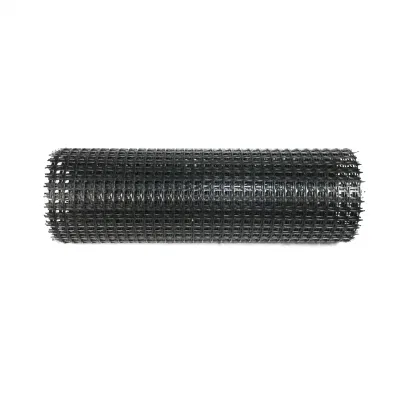

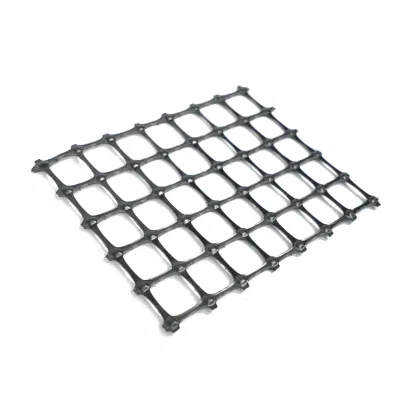

The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill. Standard Roll Dimensions.
The properties of Biaxial Geogrids, made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill. Standard Roll Dimensions.
| Biaxial Plastic Geogrid Technical Parameter (GB standard) | ||||||||
| Item | Specification | |||||||
| | TGSG1515 | TGSG2020 | TGSG2525 | TGSG3030 | TGSG3535 | TGSG4040 | TGSG4545 | TGSG5050 |
| Vertical and horizontal tensile strength≥(KN/M) | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
| Tensile strength at 2% elongation≥(KN/M) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 | 17.5 |
| Tensile strength at 5% elongation≥(KN/M) | 7 | 14 | 17 | 21 | 24 | 28 | 32 | 35 |
| Tensile strength at 5% elongation≥(KN/M) | 15 | |||||||
•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation
Geogrid is made by polypropylene(PP) as the raw material,It is produced through the process of extruding, punching, heating, longitudinal and transverse stretching.It can be used to enhancement of permanent bearable soft including highway.
Make reinforce treatment for various kinds of soft soil foundation to evenly distribute load stress and reduce uneven settlement, not easy to generate static electricity, and flammability property good in the coal mine. Used in highway, railway, port, airport and municipal project. Support in the recovery working face of coal mine and roadway in the coal mine.
Q:Can you send samples?
A:Yes,we are very happy to provide you with free samples to check the quality of our products.
Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province, with registered capital of 102 million yuan.It is a professiona lmanufacturer of geomembrane, geotextile, geogrid and other products.So we have the competitive price with best quality.
A:Our company located in Hefei,Anhui Province, with registered capital of 102 million yuan.It is a professiona lmanufacturer of geomembrane, geotextile, geogrid and other products.So we have the competitive price with best quality.
Q:Can you produce the product according to customers' requirements?
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
A:Sure,we are professional manufacturer,OEM and ODM are both welcome.
Q:How long is the delivery time?
A:General within 3-7days after received the deposit
A:General within 3-7days after received the deposit
Q:How to control product quality?
A:Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
A:Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
