Basic Info.
Model NO.
LK-TGB024
Certification
CE
Feature
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Usage
Insulation, Waterproof, Water Filter
Material
PP\Pet
Kind
Non-woven
Width
2m-6m (as Customrized)
Length
30m, 100m or Customized
Packing
Woven Plastic Bag
Standard
ASTM GM13
Delivery Time
Within 15day
Transport Package
Woven Bag
Specification
high-density polyethylene
Trademark
Looking-forward
Origin
Shandong, China
HS Code
5602100000
Production Capacity
20000sqm/Day
Packaging & Delivery
Package Size
500.00cm * 40.00cm * 40.00cm
Package Gross Weight
119.000kg
Product Description
China PET Polyester Filament Nonwoven Geotextile Manufacturer
Application:

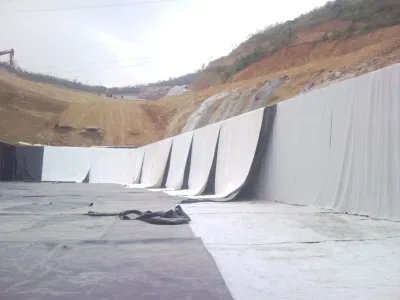

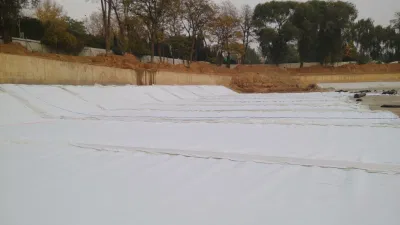

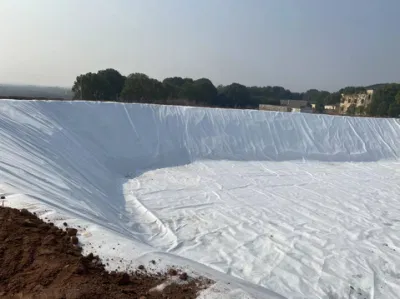

1. Reinforcement effect: Used in rock engineering such as highways, railways, airports, stone dams, slope embankments, retaining walls, and embankments, to disperse soil stress, increase soil modulus, limit soil slip, and improve stability.
2. Protection function: prevent the embankment from being washed away by wind, waves, tides, and rain, and use it for bank protection, slope protection, bottom protection, and soil erosion prevention.
3. Reverse filtration: Used as a filter layer for embankments, dams, rivers, and coastal rocks, soil slopes, and retaining walls, to prevent sand particles from passing through and allow water or air to pass freely.
TDS technical indicators
Application:1. Reinforcement effect: Used in rock engineering such as highways, railways, airports, stone dams, slope embankments, retaining walls, and embankments, to disperse soil stress, increase soil modulus, limit soil slip, and improve stability.
2. Protection function: prevent the embankment from being washed away by wind, waves, tides, and rain, and use it for bank protection, slope protection, bottom protection, and soil erosion prevention.
3. Reverse filtration: Used as a filter layer for embankments, dams, rivers, and coastal rocks, soil slopes, and retaining walls, to prevent sand particles from passing through and allow water or air to pass freely.
TDS technical indicators
| Specification | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark |
| Quality deviation per unit acreage% | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | |
| Thickness, mm≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | |
| Width deviation for range, %m | -0.5 | |||||||||||
| Mightiness at break, KN/m ≥ | 4.5 | 7.5 | 10.0 | 12.5 | 15.0 | 17.5 | 20.5 | 22.5 | 25.0 | 30.0 | 40.0 | Vertical and horizontal |
| Elongation at break, % | 40-80 | |||||||||||
| CBR bursting strength, KN≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.0 | 3.5 | 4.0 | 4.7 | 5.5 | 7.0 | |
| Effective aperture O90 (O95) mm | 0.07-0.20 | |||||||||||
| Vertical osmotic coefficient, cm/s | K x(10-1-10-3) | K=1.0-9.9 | ||||||||||
| Tearing strength, KN≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.70 | 0.82 | 1.10 | Vertical and horizontal |
