Basic Info.
Special Use
High-strength Steel Plate
Stock
Stock
Commodity
Steel Sheet
Thickness
0.125-0.5mm
Width
600-1250mm
Zinc Coating
40-275G/M2
Spangle
Minimized ;Regular;Big;Zero
Wave Number
7/8/10/11/12 Customized
Length
Customized
Standdard
JIS3301 JIS3302
Grade
Dx51d+Z, DC51D, SPCC, SGCC, Sghc, CGCC,
Hardness
SGCC 60-70hrb, Sgch 80-90hrb
Transport Package
Standard Packing to Export
Specification
SGS, ISO
Trademark
sdlcxz
Origin
Shandong, China
HS Code
72104100
Production Capacity
10000 Mt Per Month
Product Description

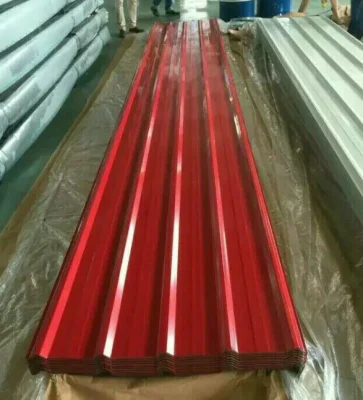

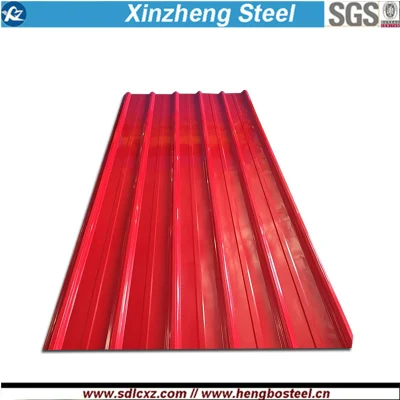

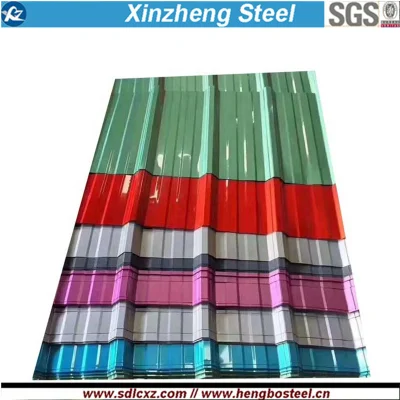

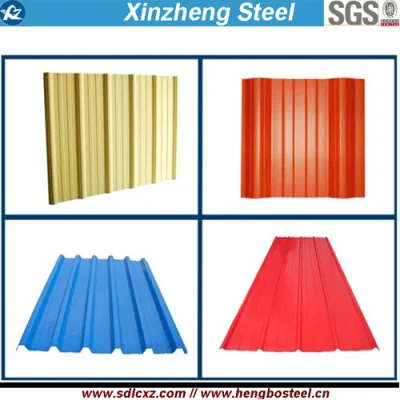

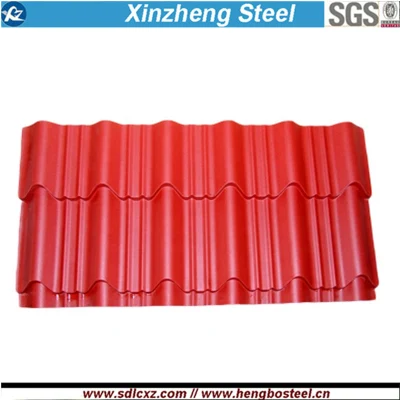

Building Material Steel Products Galvanized Roofing Corrugated roofing sheet
Product information
Roofing sheet details
Galvanized steel coil / sheet (GI): 0.14mm-1.0mm,Z40-275g/m2
Galvalumed steel coil / sheet (GL): 0.145mm-1.0mm,AZ40-180g/m2
Prepainted GI Coil,PPGL: 0.145mm-0.8mm
Steel Roofing Sheets/Corrugated Sheets:0.145mm-1.0mm
Roofing Forming machine.
Product Description
1. Thickness: 0.125-1.3mm
2. Width:600-1250mm before Corrugated
3. Zn/AZ: 40-275gsm
4. Treatment: Chromated
5. Spangle: Regular/Big/Small/Zero
6. Packing: Plastic Film+Waterproof Kraft Paper+Galvanized Sheet+Steel Strips
Roofing sheet Package
1.inner package : plastic bag +waterproof paper
2.Outer package :steel sheet with steel stripe
3.Commodity Details Specification:
Model Number:
Basic information:
Corrugated steel plate is made up of galvanized/galvalume plate or Prepainted Steel plate or other metal steel plate after rolling cold bending into a variety of wave type pressure plate.
Advantage:
a.) Attractive and innovative appearance, rich colors, decorative, flexible combination, can express a different architectural style;
b.) Light weight, high mechanical properties;
c.) Anti-earthquake, fire, rain, long life, no maintenance;
d.) Installation is simple, shorten the construction period;
e.) Environmental protection, etc.
Application:
a.) Industrial and civil buildings, warehouse;
b.) Special construction;
c.) Steel structure houses and mobile homes, roof, walls, and interior and exterior decoration, etc.
Stardard:
According to user requirements, can be delivered the following criteria: National standards, the metallurgical industry, the American ASTM, ASME standards, Japanese JIS, German DIN, British BS, European EN, the international ISO standards and the standards specific board.
Inspection Standard: In accordance with China (JB4730, GB/T2970), United States (A435, A577, A588), Japan (JISG0801, JISG0901), Germany (SEL072), British (BS5996), France (NFS04-305) and other domestic and international testing standard production test.
Payment and Delivery Time:
1.Payment:20%-30% T/T on deposit or L/C at sight
2.Delivery Time:25-35 days after the signed contract
Any needs of our products above,please just feel free to contact Carrie from Xinzheng Steel.Honor to providing you with our competitive price.
Company information
We accept the SGS/BV/ROHS certifications test.Welcome to our factory
Product information
Roofing sheet details
Galvanized steel coil / sheet (GI): 0.14mm-1.0mm,Z40-275g/m2
Galvalumed steel coil / sheet (GL): 0.145mm-1.0mm,AZ40-180g/m2
Prepainted GI Coil,PPGL: 0.145mm-0.8mm
Steel Roofing Sheets/Corrugated Sheets:0.145mm-1.0mm
Roofing Forming machine.
Product Description
1. Thickness: 0.125-1.3mm
2. Width:600-1250mm before Corrugated
3. Zn/AZ: 40-275gsm
4. Treatment: Chromated
5. Spangle: Regular/Big/Small/Zero
6. Packing: Plastic Film+Waterproof Kraft Paper+Galvanized Sheet+Steel Strips
Roofing sheet Package
1.inner package : plastic bag +waterproof paper
2.Outer package :steel sheet with steel stripe
3.Commodity Details Specification:
Item | Corrugated Galvanized/Galvalume /Prepainted Steel Roofing Sheets |
| Standard | ASTM A653M-04/JIS G3302/DIN EN10143/GBT 2518-2008 |
| Basal plate | Cold rolled steel coil |
| Zinc Coating | Z40-Z275G/m2 |
| Thickness | 0.125-1.0mm |
| Width | 600-1250mm(before corrugation) |
| Wave depth | 18(+/-2mm) |
| Wave distance | 76(+/-2mm) |
| Length | 1000-12000mm |
| Number of corrugation | 9-12 |
| Product feature | water resistance,light weight,easy installation,aesthetic,high tensile |
| Packing | standard export water-proof package with steel strips fixed |
| Delivery time | 15-45 days after confirmation |
| Weight per Steel Pallet | 3 Metric Tons |
| MOQ | 25 Metric Tons |
| Application | exterior and interior wall,roofs,and soffits |
| Qualification | ISO9001-2000Certificate |
| Advantages | 1.Design according to customers 'requirements 2.Production under ISO9001-2008 Quality System 3.Easy to be installed as light weight 4.Z40-275 is suitable for many application 5.Our products are recyclable materials 6.The less construction period, the more using time. |
Model Number:
YX31.5-130-780 | YX76-380-760 |
| YX54-410-820 | YX25-205-820(1025) |
| YX35-125-750(V-125) | YX35-247.5-990 |
| YX12-110-880(V-110) | YX15-225-900 |
| YX28-207-828 | YX76-344-688 |
| YX51-240-720 | YX60-180/263-540/790 |
| YX75-200-600 | Special Model can be negotiated |
Basic information:
Corrugated steel plate is made up of galvanized/galvalume plate or Prepainted Steel plate or other metal steel plate after rolling cold bending into a variety of wave type pressure plate.
Advantage:
a.) Attractive and innovative appearance, rich colors, decorative, flexible combination, can express a different architectural style;
b.) Light weight, high mechanical properties;
c.) Anti-earthquake, fire, rain, long life, no maintenance;
d.) Installation is simple, shorten the construction period;
e.) Environmental protection, etc.
Application:
a.) Industrial and civil buildings, warehouse;
b.) Special construction;
c.) Steel structure houses and mobile homes, roof, walls, and interior and exterior decoration, etc.
Stardard:
According to user requirements, can be delivered the following criteria: National standards, the metallurgical industry, the American ASTM, ASME standards, Japanese JIS, German DIN, British BS, European EN, the international ISO standards and the standards specific board.
Inspection Standard: In accordance with China (JB4730, GB/T2970), United States (A435, A577, A588), Japan (JISG0801, JISG0901), Germany (SEL072), British (BS5996), France (NFS04-305) and other domestic and international testing standard production test.
Payment and Delivery Time:
1.Payment:20%-30% T/T on deposit or L/C at sight
2.Delivery Time:25-35 days after the signed contract
Any needs of our products above,please just feel free to contact Carrie from Xinzheng Steel.Honor to providing you with our competitive price.
Company information
We accept the SGS/BV/ROHS certifications test.Welcome to our factory
