Basic Info.
Model NO.
PP geogrid
Classification
Plastic Geogrid
Material
Plastic
Elongation
<=13
Mesh Size
33-60mm
Strength
15-50kn/M
Popular Roll Width
3.9m, 2m, 4m
Roll Length
30-50
Transport Package
Roll with Tapes
Specification
2-4m width
Origin
China
HS Code
3926909090
Production Capacity
20000m2 Per Day
Product Description
PP/Plastic Biaxial Geogrid is made of polypropylene. It is produced through through several processes: extruding, punching, heating, longitudinal stretching and transverse stretching. It has a high tensile strength. After adding some percent of carbon black material, it makes the product good acid and alkali resistance, corrosion resistance and ageing resistance and durability.
PP/Plastic Biaxial Geogrid is widely used for Improving the bearing capacity of foundation, Preventing cracking and subsiding. It is an economic construction material which is convenient to construct, reducing cost and maintaining expense.
Compared with uniaxial geogrid, PP/Plastic Biaxial Geogrid can provide longer service time, higher strength and nicer reinfrocement ability.
By the way, we have CE/ISO certificates for this product.
Technical Data Sheet:
| PP/Plastic Biaxial Geogrid: (ISO/CE Certificates) | |||||||
| Specification | 15-15 | 20-20 | 25-25 | 30-30 | 40-40 | 45-45 | 50-50 |
| Ultimate Tensile Strength (KN/M) | 15*15 | 20*20 | 25*25 | 30*30 | 40*40 | 45*45 | 50*50 |
| Tensile Strength at 2% Strain (KN/M) | 5 | 7 | 9 | 10.5 | 14 | 16 | 17.5 |
| Tensile Strength at 5% Strain (KN/M) | 7 | 14 | 17 | 21 | 28 | 32 | 35 |
| Strain at Ultimate Strength (%) | 13 | ||||||
| Roll Width (m) | 50 | ||||||
| Roll Length (m) | 1/2/3.95/4/5.5/6 | ||||||

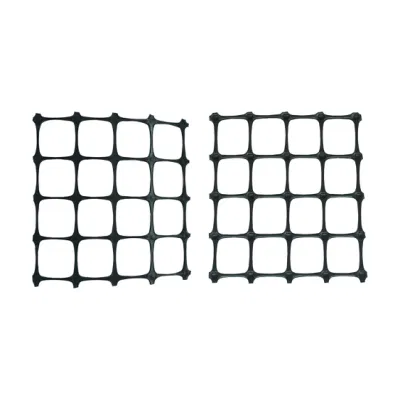

Propduct Photos:
Our advantages:
New raw material and the precise formula;
Advanced equipment, perfect production process;
Real-time detection, strict quality control staff;
The packaging is solid to ensure the safety of the goods in delivery.
Certificate: CE/ISO
Application:
- It reinforces old asphalt concrete road surface as well as asphalt layer, and prevents damage;
- It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction;
- It is used in road expansion and improvement project, control cracks caused by old and new combination position or by uneven sedimentation;
- It is used in soft soil base reinforcement treatment. It is favorable for soft soil water separation and concretion,restrains sedimentation effectively, distributes stress uniformly and improves overall strength of road base;
- It is sued for preventing contraction crack caused by new road semi-rigid base layer, and reinforces and prevents road surface crack caused by foundation crack reflection.
Package and Delivery:
Package: roll with tapes.
Delivery: 15 containers per month.
FAQ:
Q: Are you factory or trading company?
Q: Which country did you export?
A: Our products have been exported to many countries all over the world, including USA, Panama, Colombia, Chile, Peru, Ecuador, Russia, UK, Italy, France, Germany, Poland, Hungary, Turkey, Romania, Israel, India, Philippines, Singapore, Vietnam, Thailand, Indonesia, Australia, New Zealand...
Q: May I have your samples for testing?
Q: What is your MOQ?
A: Normally, MOQ is one 20'GP container. But we also accept LCL for trial order.
Q: What's the payment term?
