Basic Info.
Model NO.
20KN to 200KN
Name
Steel Plastic Composite Geogrid
Manufacturer Method
Ultra-Sonic Welded Geogrid
Transport Package
Woven Bag
Specification
5*50
Origin
Taian China
HS Code
392690
Production Capacity
500000
Product Description

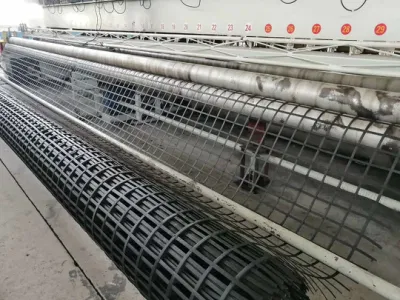

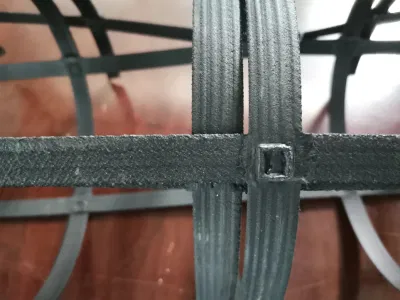

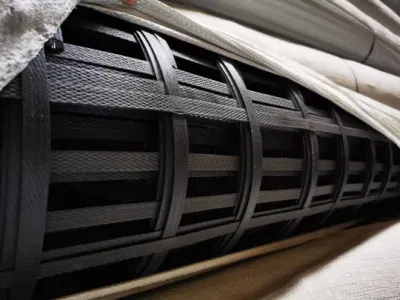

Steel Plastic composite Geogrid

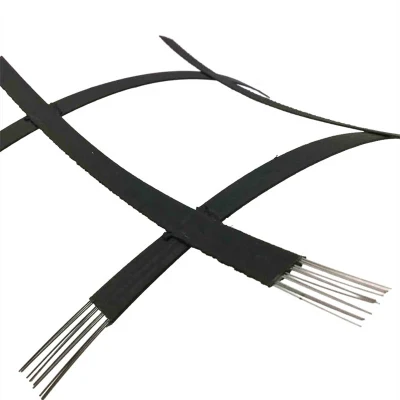

The steel plastic composite geogrid uses high tensile steel wire (or other fiber)
specially handled and polyethylene (P.E) with other assistants. Then squeeze it out
and make it become composite high-strength anti-pull belt and the surface has
rough embossing then it is reinforcement earthwork belt. Warp knitting vertically
and horizontally using this single belt and welding the joint using a special welding
technology to molding is reinforcement geogrid.
Product Features
1.The intensity is high and the distort is small;
2.The wriggle is small;
3.Anti-corrosive, the life is long, the geogrid take the plastic material as a protector, auxiliary enables it by each kind of
assistant to have the anti aging, the oxidation susceptibility again, but acid proof , alkali, salt and so on adverse
circumstance corrosion. Therefore, the steel modes the earthwork gril to be possible to meet each kind of permanent
work100year above use need, and the performance is superior, the size stability is good;
4.The construction is convenient ,the cycle is quickly short. the cost is low; the steel plastic complex geo grid to lay down,
joining ,the localization to be easy, to be smooth, avoids overlapping crossover, but reduced the project cycle effectively,
saved the building cost of projects by 10%-50%.
Applications:

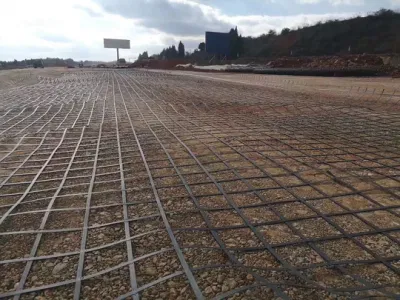

The products are applied widely in railway, bridge, dock, retaining wall.dam to reinforce the soft soil and to resist the road
surface's crack.
