Product Description

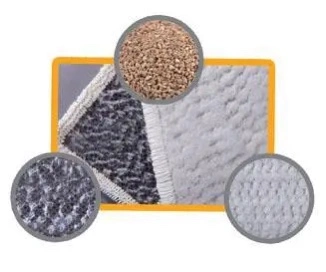

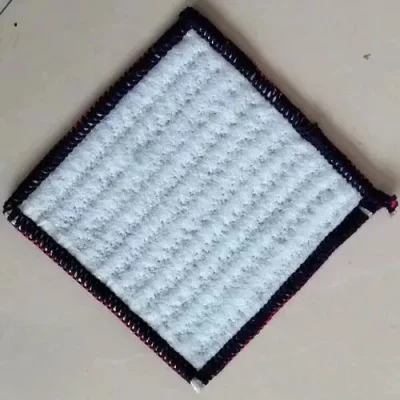

Geosynthetics Clay Liner is one of geotextile and bentonite composites, typically sodium bentonite sandwiched between two layers of non woven and woven geotextile, engineered for a variety of environmental applications. It is needle punched environmental reinforcement composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrel and effectively preventing water leekage.
1. Self-sealing
2. Better hydraulic performance and resistance to varying weather conditions.
3. Environmental and green materials.
4. Easy installation
5. Permanent stability and performance
6. High shear resistance
7. Adapting to uneven settlement
1. Municipal project: underground construction of subway, building and waterproofing of roof water tank.
2. Environmental sanitation: solid waste landfill, sewage treatment, industrial waste disposal.
3. Water conservancy: waterproofing, leakage block and reinforcement of reservoirs and dams
4. Artificial lake, golf course and fish pond waterproofing.
5. Petrochemical and mineral industrial waterproofing.
| ITEM | Value | |||
| GCL-NP | GCL-OF | GCL-AH | ||
| Unit area(g/m2) | ≥4000 and not less than the specified value | |||
| Swell Index(ml/2g) | ≥24 | ≥24 | ≥24 | |
| Methylene Blue Absorbed(g/100g) | ≥30 | ≥30 | ≥30 | |
| Tensile Strength(N/100mm) | ≥600 | ≥700 | ≥600 | |
| Elongation at Max Load(%) | ≥10 | ≥10 | ≥8 | |
| PeelStrength(N/100m) | Non-woven geotextile and woven geotextile | ≥40 | ≥40 | - |
| PE geomembrane and Non-woven geotextile | - | ≥30 | - | |
| Permeability Coefficient(m/s) | ≤5.0×10-11 | ≤5.0×10-12 | ≤1.0×10-12 | |
| Hydrostatic Pressure Resistance(Mpa) | 0.4 Mpa,1h | 0.6 Mpa,1h | 0.6 Mpa,1h | |
| Fluid loss(ml) | ≤18 | ≤18 | ≤18 | |
| Durability of bentonite(ml/2g) | ≥20 | ≥20 | ≥20 | |
1. Are you a manufacturer or a trading company?
Our factory has been established for many years ,and has its own export trade department.
2. Which countries and nations you export?
Products are exported to Southeast Asia, Europe and the United States and many contries throughout the country.
We can provide free samples. But you need to pay the freight. After you place the order, we will refund the single freight of the sample.
4. If I want to visit your factory, can you do that ?
You are always welcome to visit our factory. We will pick you up in advance when you arrive.
5.How I can get the infromation about my order?
We will send you the pictures and videos of the goods in production for cheking. In order to make sure the quality and date of delivery, we will always keep in touch with you in the whole production.
The main equipments of the company are imported from Germany, Italy and Britain, the technology is advanced and equipments are sophisticated. All products adopt national standard and International standard, with the precision testing instruments and complete testing means.
The company's products are building waterproof coil, composite geomembrane, filament geotextile, short filament geotextile, geomembrane, waterproof board, waterproof blanket, geogrids, drainage board, geocell, soft permeable pipe, etc. The company has passed IS09001 international quality system certification, IS014000 environmental system certification.Products are exported to Southeast Asia, Europe and the United States and many countries throughout the country. The products are widely used in water conservancy, highway, railway, bridge, tunnel, environmental protection, aviation, agriculture, mining and other fields. "
